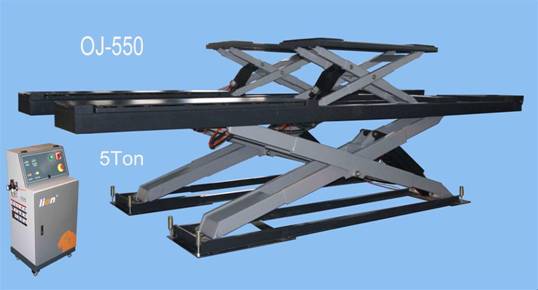

Model No.OJ-550 Scissor lift for wheel alignment 5.0Ton
Features
1.Option the on surface or underground installation,and with second lift function. The second platforms are extendable.
2.Very precise platform leveling accuracy 1mm possible.
3.save the space, easy to adjust and operate.
4.suitable to all kinds of turnable plates.
5.the Hydraulic system adopt to Italian magnet valve and seal rings.
6.Pneumatic air safety lock control sliding board.
7.if the electric is stoped, you can manually lift the vehicle down on the floor (option)
Specifications
Lift Weight 5000kg
Max.primary lifting height 2160mm
The lowest height 360mm
Lifting time 60s
Platform total length 5000mm
Each platform width 610mm
Free width between two platforms 840mm
Power Supply Voltage 220V/230V/380V/400V
Motor power 3.0kw/220V 2.2kw/380V
Net weight 2100kg Gross Weight 2150kg |
|
|
| |
|
|
|
| |
|
|
|
|
|
Model No.OJ-540 scissor lift
4.0 Ton
Features
1.Option the on surface or underground installation,t function.
2.Very precise platform leveling accuracy 1mm possible.
3.save the space, easy to adjust and operate.
4.the Hydraulic system adopt to Italian magnet valve and seal rings.
5.Pneumatic air safety lock control sliding board.
6.if the electric is stoped, you can manually lift the vehicle down on the floor
(option)
7.Korea Power unite ,Italian Power Unite,Chinese Power unite (option)
Specifications
Lift Weight 4000kg
Max.primary lifting height 1700mm
The lowest height 360mm
Lifting time 60s
Platform total length 4800mm
Each platform width 610mm
Free width between two platforms 840mm
Power Supply Voltage 220V/230V/380V/400V
Motor power 3.0kw/220V 2.2kw/380V
Net weight:1750kg Gross Weight 1800kg |
|
|
| |
|
|
|
| The Jacks is extendable, and they can freely move, and they can lift by handy pump. and the jacks also have the safety lock. |
|
|

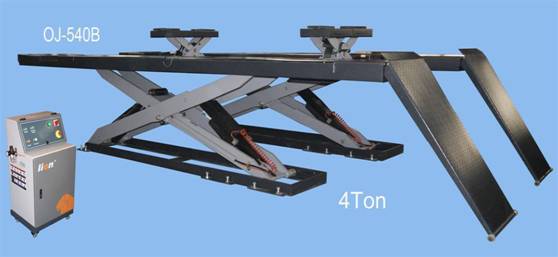

Model No.OJ-540B scissorlift for 3D wheel alignment 4.0 Ton
Features
1.Option the on surface or underground installation,and with second lift function. The second platforms are extendable.
2.Very precise platform leveling accuracy 1mm possible.
3.save the space, easy to adjust and operate.
4.suitable to all kinds of turnable plates.
5.the Hydraulic system adopt to Italian magnet valve and seal rings.
6.if the electric is stoped, you can manually lift the vehicle down on the floor (option)
Specifications
Lift Weight 4000kg Jack lift weight 2000kg
Max.primary lifting height 1780mm
The second lift height 390mm
The lowest height:190mm
Lifting time 60s
Platform total length 4500mm
Each platform width 610mm
Free width between two platforms 840mm
Power Supply Voltage:220V/230V/380V/400V
Motor power 3.0kw/220V 2.2kw/380V
Net weight 1800kg Gross Weight 1850kg |
|
|
| |
|
|
|
| |
|
|
|
|
|
Model No.OJ-630B Super Thin Scissor Lift 3.5Ton
Features
1.Surface mounted
2.Four cylinder structure small frame 115mm to ground
3.It is used for above second floor or it need to frequently change the work place.
4.Pneumatic locking system
5.Platforms extensions for long vehicle
Specifications
Lifting capacity 3500Kg(6600lbs)
Lifting Height 1850mm
Platform Length 1435mm overall length 2000mm
Min. Height 115mm
Single Platform Width 600mm
Space Between Platforms 800mm
Lifting Time:50-65s
Motor 2.2kw/380V -3Ph
3.0kw/220V -1Ph
Rated oil pressure 22Mpa Noise:<70dB
Net Weight 840kg Gross Weight 890Kg |
|
| |
|
|
|
|
|
|

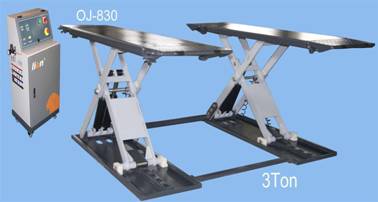

Model No.OJ-830 Super Low Movable
Scissor Lift 3.0 Ton
Features
1.With movable wheel, It is convenient to mounted and removed.
2.the lowest height (105mm) it needn't to trench ,and the bridge approach with sliding wheel.
3.It uses four cylinders drive to strengthen lifting capacity.
4.with Pneumatic lock to ensure the safety at different of heights.
5.The hydraulic system is protected by safety controlling valve to avoid exceeding the biggest limited pressure.
Specifications
Lifting capacity 3000kg
Max lifting height1000mm
Min. Height:105mm
Platform Length1420-1853mm
Single Platform Width 490mm
Space Between Platforms 860mm
Lifting time 40s Noise<70dB
Power Supply Voltage 3.0Kw/220V-1Ph 2.2Kw/380V-3Ph
Rated Oil Pressure 25Mpa
Air supply pressure 0.6-0.8Mpa
Net Weight 550Kg Gross Weight 600kg |
|
|
| |
|
|
|
| |
|
|
|
|
|
Model No.OJ-635 Rectangular Tube Scissor Lift 3.5 Ton
Features
1.The frame is made of Rectangular Tube.
2.Extendable length platform is capable of serving more vehicles.
3.Pneumatic self-locking safety system. Safety teeth get into working position automatically when release push button every time.
4.In-ground mounted design makes car driving convenience and maximize your workshop
5.The hydraulic system is protected by safety controlling valve to avoid exceeding the biggest limited pressure.
6.With limited lifting height, giving a alarm when lift down (option).
Specifications
Lifting capacity 3500kg
Max lifting height 2030mm
Min. Height:330mm
Platform Length1540-1740mm
Single Platform Width 550mm
Space Between Platforms 800mm
Lifting time 60s Noise<70dB
Power Supply Voltage 3.0Kw/220V-1Ph 2.2Kw/380V-3Ph
Net Weight 800Kg
Gross Weight 850kg |
|
|
| |
|
|
|
The platforms are extendable
The frames are made of rectangular tubes. |
|
|
Model No.OJ-630H Scissor Lift 3.0 Ton
Features
1.in-ground mounted design and save space.
2.Extendable length platform is capable of serving more vehicles.
3.Pneumatic self-locking safety system.
4.In-ground mounted design makes car driving convenience and maximize your workshop
5.The hydraulic system is protected by safety controlling valve to avoid exceeding the biggest limited pressure.
6.With limited lifting height, giving a alarm when lift down (option).
Specifications
Lifting capacity 3500kg
Max lifting height 2030mm
Min. Height:330mm
Platform Length1540-1740mm
Single Platform Width 550mm
Space Between Platforms 800mm
Lifting time 60s Noise<70dB
Power Supply Voltage 3.0Kw/220V-1Ph 2.2Kw/380V-3Ph
Net Weight 800Kg Gross Weight 850kg |
|
|
| |
|
|
|
| |
|
|
asymmetrical arms
Long arm maximum length 1420mm
Long arm minimum length 1070mm
Short arm maximum length 820mm
Short arm minimum length 720mm |
|
|
|
Model No.OJ-3408 Two Post Lift Symmetric 4.0Tons
Pull two sides of Machinery safety release cable to lower the vehicle
FOB Dalian Price
Container Price $840 Sample Price $1000
Specifications
Lifting capacity 4000Kg
Post Height 2826mm
Car Max lifting height 1900mm
Lift min stand height 840mm
Clearance between posts 2800mm
Total width 3420mm
The width of Car 2400mm
Symmetric arm
arm maximum length 1220mm
arm minimum length 720mm
Lifting Time 50s
Power Supply Voltage 220V/380V,1Ph,3Ph
Noise <70dB
Net Weight 700kg
Gross Weight 750kg
Cubic Meter 1.09CBM |
|
|
| |
|
|
|
asymmetrical arms
Long arm maximum length 1420mm
Long arm minimum length 1070mm
Short arm maximum length 820mm
Short arm minimum length 720mm |
|
|
|

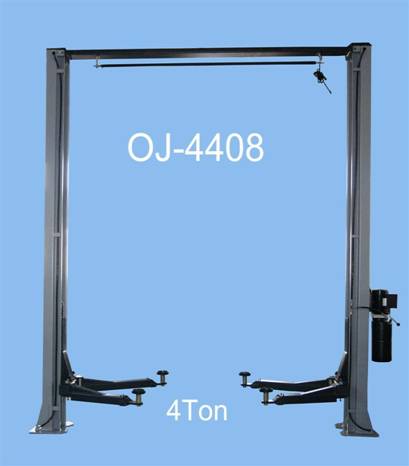

Model No.OJ-4408 Two Post Lift
With asymmetrical arms/ Symmetric 4.0Tons
Pull two sides of Machinery safety release cable to lower the vehicle
Specifications
Lifting capacity 4000Kg
Overall Height 3826mm
Primary Max. lifting height 1900mm
The Min. lifting height 98mm
Clearance between posts 2400mm
Total width 3420mm
The width of Car 2400mm
Symmetric arm
arm maximum length 1220mm
arm minimum length 720mm
Lifting Time 50s
Power Supply Voltage 220V/380V,1Ph,3Ph
Noise <70dB
Net Weight 750kg
Gross Weight 800kg
Cubic Meter 1.09CBM |
|
|
| |
|
|
|
