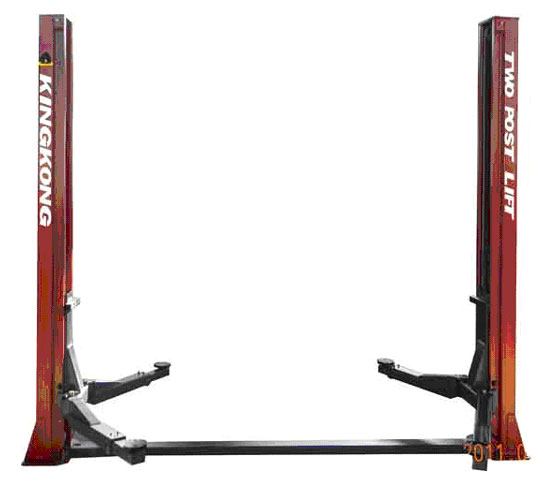

YL350A
TwoPOST LIFT |
YSZ350-1 Four post
lift with Alignment Jack
With jacks/Second Hydraulic lift for wheel alignment, 4.0tons |
| Specifications: |
Short arm maximum length: 700mm |
Lifting capacity: 3500Kg (7700lbs)
|
Short arm minimum length: 450mm |
Post Height: 2800mm
|
Lifting Time: 50s |
Car max lifting height: 1900mm
|
Power Supply Voltage: 220V/380V, 1ph/3ph |
Lift min stand height: 85mm
|
Noise: <70dB |
Clearance between posts: 2830mm
|
Net Weight: 650Kg |
Total width: 3420mm
|
Gross Weight: 700Kg Cubic Meter: 0.65cbm |
Long arm maximum length: 1350mm
|
Packing Dimension: |
| Long arm minimum length: 750mm |
2850mm*400mm*500mm and 800mm*300mm*300mm |
YSZ350-1
Four post lift with Alignment Jack |
YSZ350-1 Four post
lift with Alignment Jack
With jacks/Second Hydraulic lift for wheel alignment, 4.0tons |
| Specifications: |
Length of Platform: 4200mm |
Lifting Capacity: 4000Kg (7700lbs)
|
Width of Each Platform: 500mm |
Max.primary Lifting Height:1600mm
|
Minimum Height of Platform: 180mm |
Max.secondary lifting height:400mm
|
Length of the jack frame:800-1200mm |
Lifting Time(Loaded): 50s
|
Net Weight: 1160Kg Gross Weight:1210Kg |
Power Supply Voltage:220V,1ph
or 380V/415V 3ph
|
Packing Dimension: 4300mm*640*840mm |
Motor Power: 2.2Kw/380V 3.0Kw/220V
|
Cubic Meter:2.32cbm |
Width Between Columns:850mm
|
|
|
|
