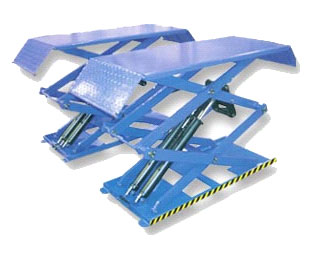

| YD350B
SCISSOR LIFT |
| Very
precise platform leveling accuracy 1mm possible |
| Specifications: |
Lift weight: 3000kg; |
| Max.primary
lifting height: 450mm; |
The lowest height: 180mm |
| Lift
time: 30s |
Platform total length: 4200mm |
| Length
of the jack frame: 1500mm |
Each platform width:600mm |
| Free
width between two platforms:850mm |
Power Supply Voltage: 220V/230V/380V/400V |
| Motor
power:3.0kW/220V 2.2 Kw/380V |
Net Weight: 1100Kg |
| Gross
Weight: 1150Kg |
Packing Dimension: 4500mm*650mm*300mm(2pc) |
| 1000mm*450mm*400mm(1pc) |
Cubic Meter:1.94CBM |

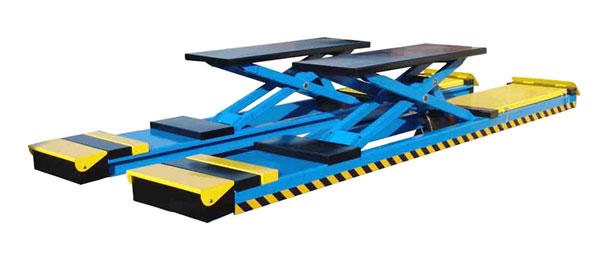

| YX300
FULL RISE SCISSOR LIFT |
Extendable and
wide platform is capable of serving more vehicles.
Pneumatic self-locking safety system.Safety teeth get
into working position automatically when release push
button every time. In-ground mounted design makes car driving
convenience and maximize your workshop |
| Specifications: |
Lowering time:25s |
Lifting capacity: 3000Kg (6600lbs)
|
Power Supply Voltage: 220V/380V |
Max Lifting Height: 1800mm
|
Noise: <70dB |
Min Hight:280mm
|
Net Weight: 750Kg (2000lbs) |
Platform Length: 1500mm
|
Gross Weight: 800Kg |
Single Platform Width: 500mm
|
Packing Dimension:1000mm×400mm×350mm (1pc) Cubic |
Space Between Platforms: 850mm
|
Meter: 1550mm×550mm×350mm (2pcs) |
Lifting time: 30s
|
|
